The image transmission beam is a flexible passive image transmission device.
Its structure is to integrate many optical fiber monofilaments of a certain length into a bundle.
The monofilaments at both ends are closely arranged in a one-to-one correspondence.
After curing and grinding, they become the image transmission beam.
The optical fiber image transmission bundle can transmit images in a soft and curved state, realizing image transmission in dangerous and environments where human eyes cannot directly observe.
It can be used in strong magnetic field, electric field, high and low temperature, high humidity and vibration environment.
Product Origin:
Jiangsu, ChinaMain Material:
Glass,QuartzProduct Size:
customApplication:
Thermal imaging,IR optical imaging,Laser delivery,Chemical sensing,Photon detection,IR early warning,Industrial and Medical image transmission, etc.
It would be helpful to have the following information ready for discussion:
Note: Customized to customer requirements glass fiber image transmission bundle.

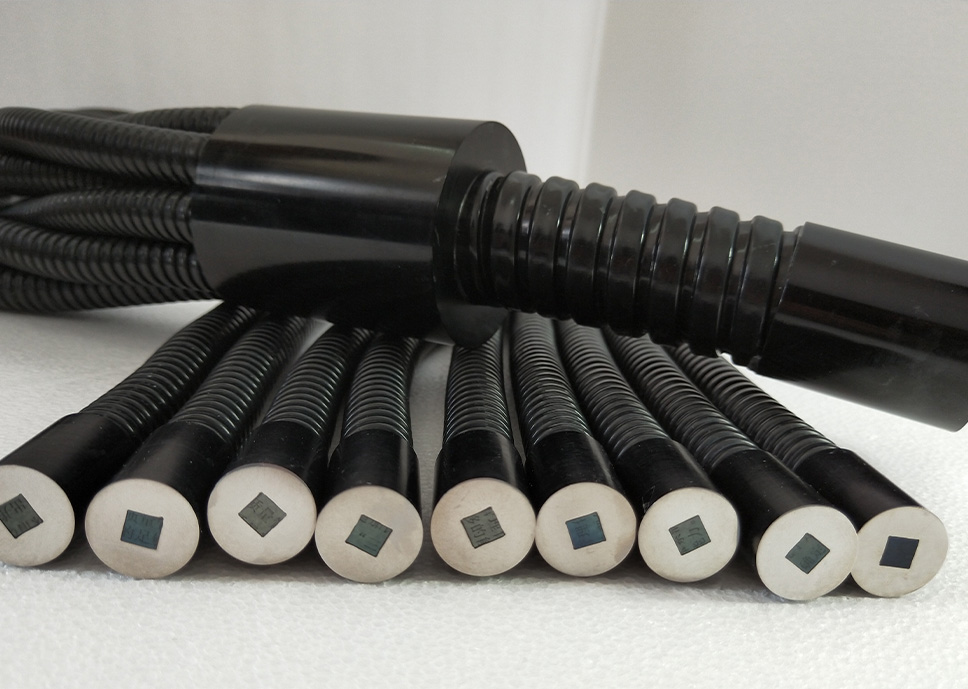

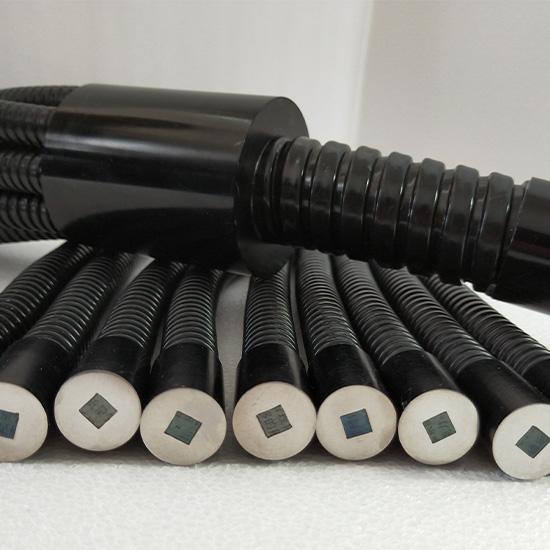

Multi-component glass optical fiber image transmission bundle:
The multi-channel image transmission beam is a fiber optic image transmission device with a complex optical path structure.
It can converge multiple images on one end surface and output them. Its structure can be four-in-one, six-in-one, nine-in-one and other structures.
|
Typical Bundle Specifications |
|
Image Format（mm） |
φ0.6-φ2.0，3×3-25×25 |
|
Diameter（μm） |
8-15 |
|
Element（NA） |
0.6 |
|
Operating Temperature（℃） |
-40/80 |
|
Bending Radius（mm） |
≤100 |
|
Length（mm） |
150-5000 |
Product Pictures

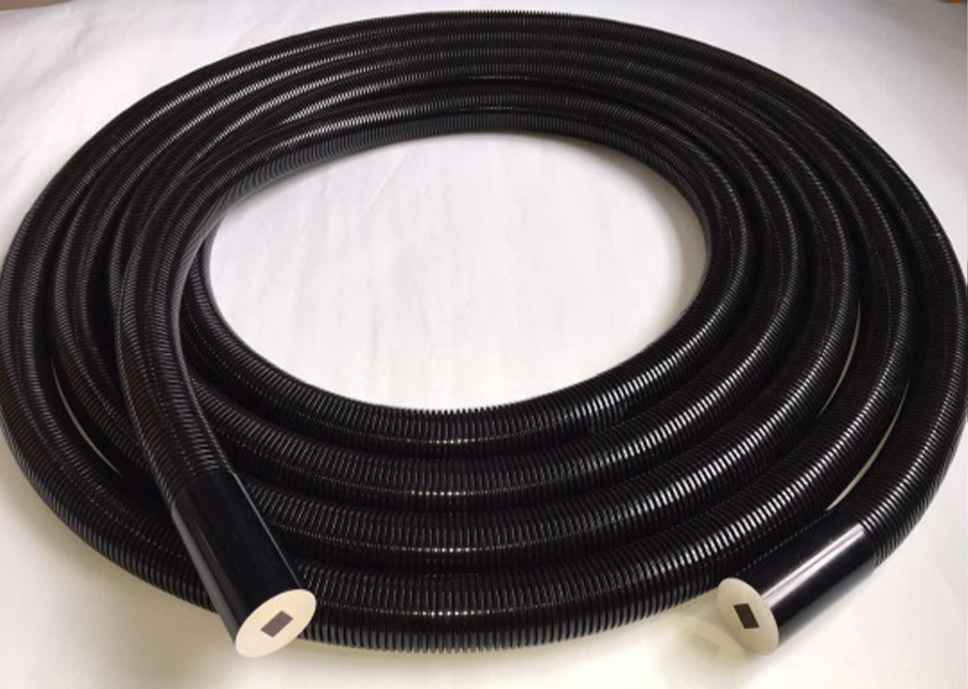

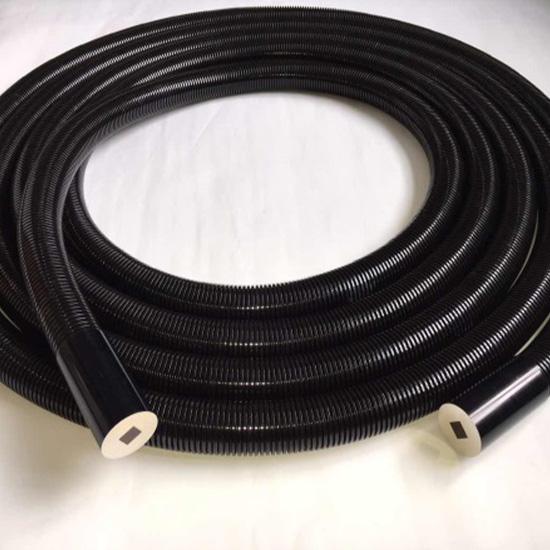

Quartz fiber image transmission bundle:
Quartz image beam is a flexible passive,image transmission device, which can be used in nuclear radiation, neutron radiation, electromagnetic radiation and other harsh environments.
Application:High speed photography,Nuclear radiation,Nuclear industry,Neutron radiation environment,etc.
|
Typical Bundle Specifications |
|
Gamma resistant dose（Gray） |
105-6 |
|
Image Format（mm×mm） |
Image Format（mm×mm） |
|
Diameter（μm） |
27.5 |
|
Length (mm) |
1000-15000 |
|
Element (NA) |
0.22 |
|
Bending Radius (mm) |
≤100 |
Product Pictures

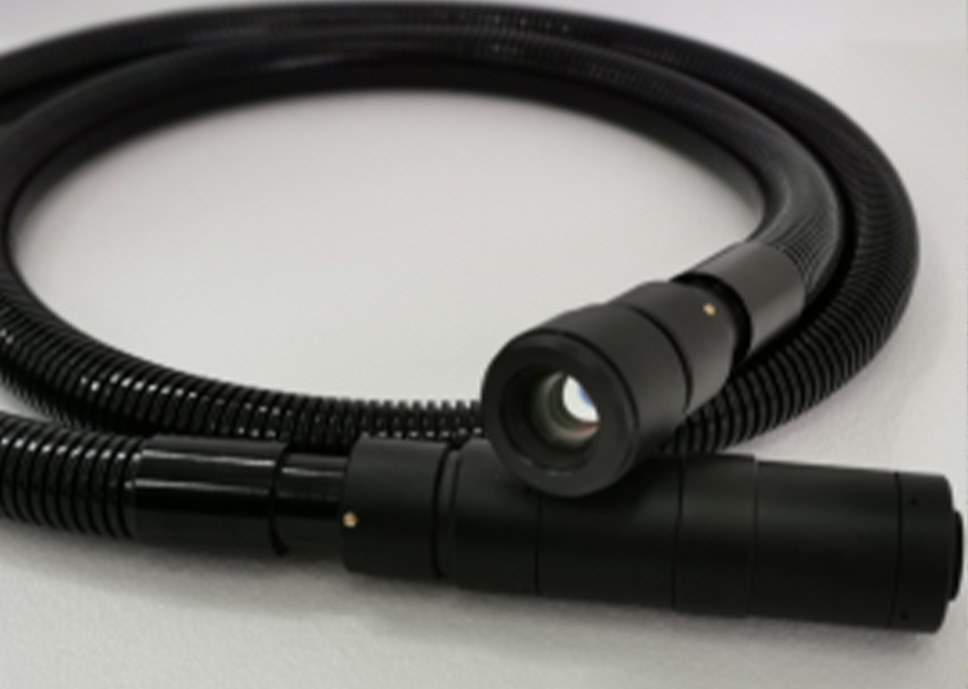

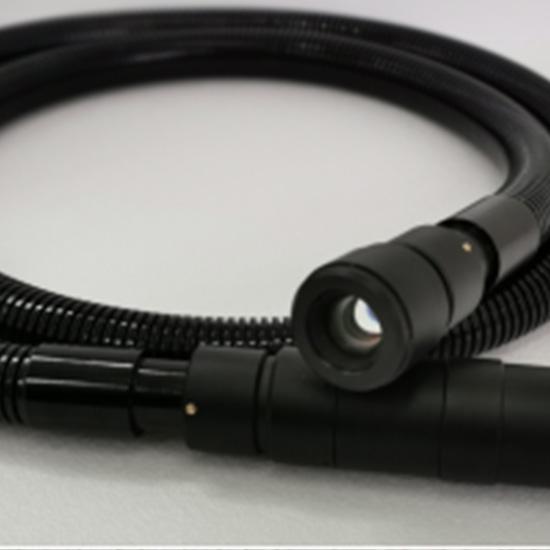

Low-loss Chalcogenide Image Transmission Bundle:
The chalcogenide infrared optical fiber image transmission bundle transmits the infrared optical image directly from one end to the other through the optical fiber, and can be used with the back-end infrared thermal imaging detector.
Application:Detection of heat distribution of objects in strong magnetic fields, hazardous environments, narrow spaces or small holes
|
Typical Bundle Specifications |
|
Model |
Transmission(μm)
|
Optical Loss(dB/m)
|
Element(NA)
|
Diameter(μm)
|
Highest Working Temperature(oC)
|
|
IRF-S Series |
1.0~6.0μm |
0. 2@3.8μm |
0.10~0.30±0.01 |
30~200μm |
150 |
|
IRF-TE Series |
2.0~12.0μm |
1.0@7.0μm |
0.10~0.30±0.01 |
30~200μm |
200 |
Product Pictures
Related Products
Our Factory
The multi tube light guide has thress or more furcates, these light guide are ideal when illuminating an object from many different angles, such as in the case of IC pin inspection. Application for printer color control, exhibition lighting, UV curing, Jewelry Lighting, and other variety of areas.
These Light guides can be used when line illumination or one dimensional linear CCD lighting is necessary. Applications include glass substrate inspection, PCB board inspection and angled IC pin inspection.
In addition to our standard straight type light guides, many different options are available such as random sequence, heat resistant, and small diameter types. These light guides are ideal for spot and coaxial illumination.
Use these light guides for applications where lighting from two directions is need like when using a microscope or CCD camera or for pattern recognition. Interlock type tube material allows you to bend the type as needed and fix it in place. SUS flexible type tube material allows you to move the light guide around freely in a small space. Small diameter type light guides with a smaller minimum bend radius are also available.
Various sizes and distributions can be customized. Can provide a wide spectral conductance. A variety of standard interfaces are available to couple LED and Halogen light sources.
Can be autoclaved under high temperature 135°C and high pressure 0.22MPA. Also we can make the light guide rod that can suit your led curing light. Size and color can be customized.
1 Adopt optinum stainless steel material 2 Adopt German fiber optical 3 All endoscopes are full high definition compatible allowing clear, bright and sharp pictures. 4 Autoclavable and steam sterilization compatible 5 Corrosion resistant 6 Tough construct 7 Superb workmanship 8 Compatible with VANHUR, OLYMPUS, STORZ, WOLF, ACMI STRYKER light guide cable.
This Electronic endoscope product is modular structure designed. It is made up of 3 modules: Display module, Hose module and Main control module. Display module: customers can choose 5″(Easy to carry)or 8″(Better for viewing)according to different requirement. Hose module: can be customized by different length & diameter within same type of signal source to match different using & purchasing cost requirements.
