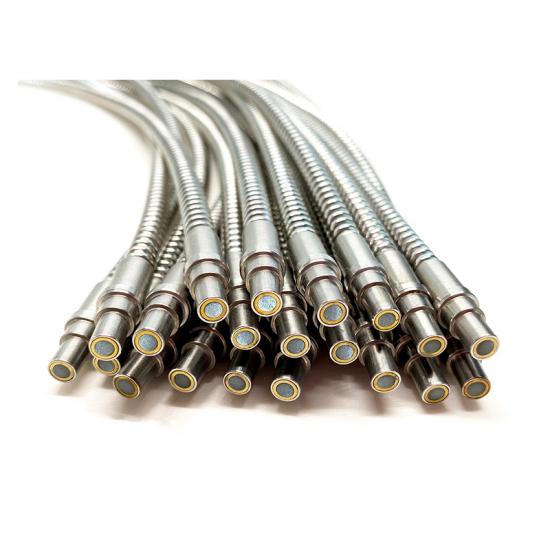

Fiber Optical Straight Light Guide

The multi tube light guide has thress or more furcates, these light guide are ideal when illuminating an object from many different angles, such as in the case of IC pin inspection. Application for printer color control, exhibition lighting, UV curing, Jewelry Lighting, and other variety of areas.

These Light guides can be used when line illumination or one dimensional linear CCD lighting is necessary. Applications include glass substrate inspection, PCB board inspection and angled IC pin inspection.

Use these light guides for applications where lighting from two directions is need like when using a microscope or CCD camera or for pattern recognition. Interlock type tube material allows you to bend the type as needed and fix it in place. SUS flexible type tube material allows you to move the light guide around freely in a small space. Small diameter type light guides with a smaller minimum bend radius are also available.

Various sizes and distributions can be customized. Can provide a wide spectral conductance. A variety of standard interfaces are available to couple LED and Halogen light sources.

Can be autoclaved under high temperature 135°C and high pressure 0.22MPA. Also we can make the light guide rod that can suit your led curing light. Size and color can be customized.

1 Adopt optinum stainless steel material 2 Adopt German fiber optical 3 All endoscopes are full high definition compatible allowing clear, bright and sharp pictures. 4 Autoclavable and steam sterilization compatible 5 Corrosion resistant 6 Tough construct 7 Superb workmanship 8 Compatible with VANHUR, OLYMPUS, STORZ, WOLF, ACMI STRYKER light guide cable.

This Electronic endoscope product is modular structure designed. It is made up of 3 modules: Display module, Hose module and Main control module. Display module: customers can choose 5″(Easy to carry)or 8″(Better for viewing)according to different requirement. Hose module: can be customized by different length & diameter within same type of signal source to match different using & purchasing cost requirements.

The image transmission beam is a flexible passive image transmission device. Its structure is to integrate many optical fiber monofilaments of a certain length into a bundle. The monofilaments at both ends are closely arranged in a one-to-one correspondence. After curing and grinding, they become the image transmission beam. The optical fiber image transmission bundle can transmit images in a soft and curved state, realizing image transmission in dangerous and environments where human eyes cannot directly observe. It can be used in strong magnetic field, electric field, high and low temperature, high humidity and vibration environment.
